UKKO

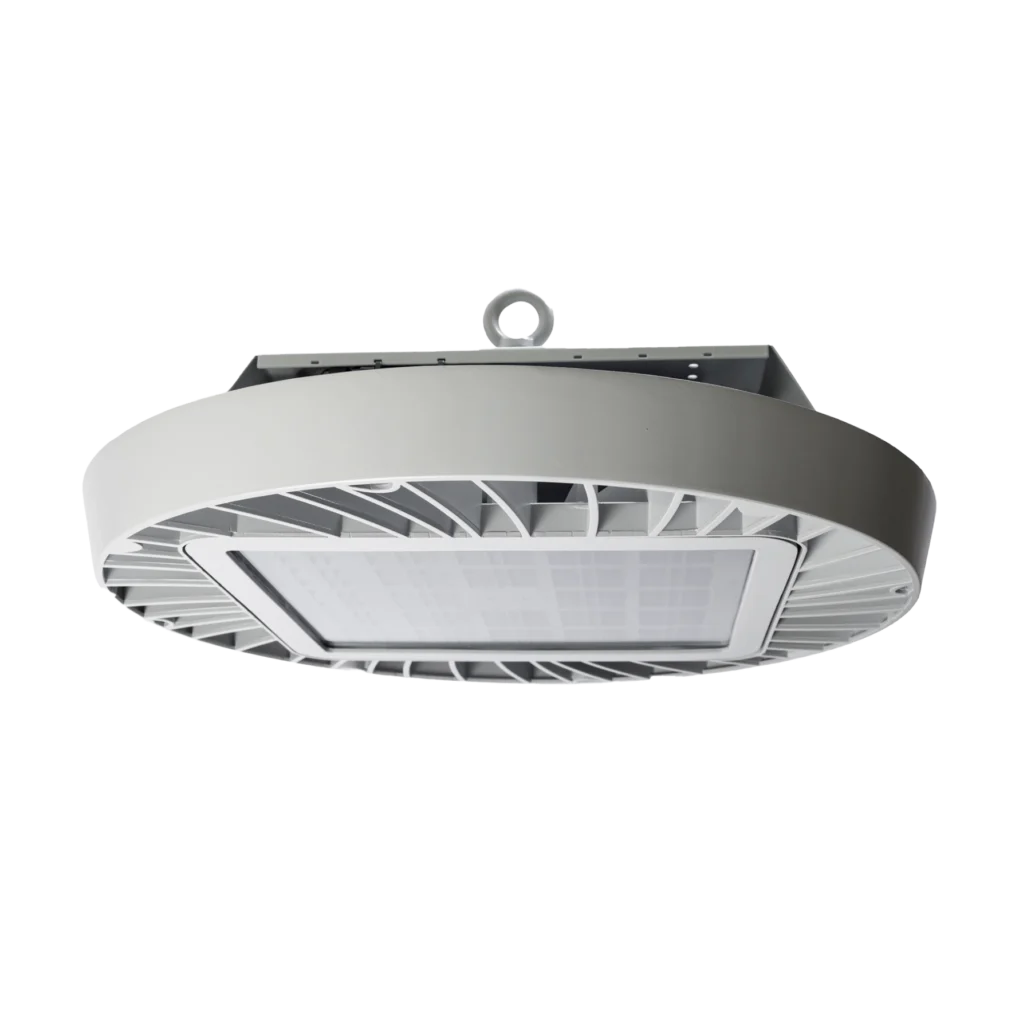

UKKO LED luminaire.
UKKOUKKOUKKOUKKOUKKOUKKOUKKO
PBLC / PROFESSIONAL LIGHTING

UKKO

Maximum power240 W
Efficacy144 lm/W
Luminous flux34500 lm
ProtectionIP65 IK08
Explore the models
↓
01 / DESIGN

Designed for your installation.

High-performance industrial suspension designed to replace traditional HIDs, the UKKO comes in two different sizes with a wide range of mounting and optical options. A premium industrial light, the UKKO provides a low UGR beam with enhanced robustness thanks to its IK08 housing, resistant to corrosive environments, and delivers lighting performance of up to 140 lm/W.

02 / MODELS

Model variants

Power
140 W
Efficacy
140 lm/W
Luminous flux
14000 lm
Weight
5.3 kg
IES photometric file↓
Power
145 W
Efficacy
138 lm/W
Luminous flux
20000 lm
Weight
5.3 kg
IES photometric file↓
Power
200 W
Efficacy
138 lm/W
Luminous flux
27500 lm
Weight
9.7 kg
IES photometric file↓
Power
240 W
Efficacy
144 lm/W
Luminous flux
34500 lm
Weight
9.7 kg
IES photometric file↓
Power
145 W
Efficacy
120 lm/W
Luminous flux
175000 lm
Weight
5.3 kg
IES photometric file↓
Power
200 W
Efficacy
119 lm/W
Luminous flux
23700 lm
Weight
9.7 kg
IES photometric file↓
Power
240 W
Efficacy
125 lm/W
Luminous flux
30000 lm
Weight
9.7 kg
IES photometric file↓
03 / CONFIGURATION

Technical details

DALI, 1-10V

3000K, 4000K, 5000K, 5700K

80Ra

Standard 70°, 90°

200-277VAC

-30°c~50°c

DETAIL / DESIGN

Heavy-Duty Casing

UKKO was specifically designed to replace HID suspensions of >400W for industrial needs. Combined with an optimal thermal design in cast aluminum, UKKO features a C3 anti-corrosive structure to meet the toughest requirements, including highly corrosive environments such as swimming pools. Additionally, its uncompromising optical design enables it to achieve an exceptional lifespan of 100,000 hours (L90B10@Ta25°C).
DETAIL / DESIGN

DALI Compatible Driver

The UKKO driver is equipped as standard with a DALI bus, enabling integration with modern BMS/BAS systems to support energy optimization. Furthermore, the design of the UKKO and the placement of the driver ensure optimal thermal dissipation and facilitate replacement if necessary.
DETAIL / DESIGN

Optional Anti-Glare Shield (AG)

The UKKO fixtures are optionally available with an anti-glare shield, which blocks direct exposure to the LED diodes for enhanced visual comfort. With this feature, high-power luminaires can be deployed at moderate heights to meet significant lighting requirements without concern for glare from direct LED exposure.
DETAIL / DESIGN

Manufactured in Europe

UKKO is designed and manufactured in Europe to best meet the specific demands of the European market and respond to customer needs with great agility. To address manufacturing cost, logistics, environmental concerns, and uncompromising quality control, the main assembly unit has been established in Estonia, a member of the European Union since 2004.
04 / INTEGRATION

Technical data.

UKKO

Chargement du diagramme IES…

Chargement du diagramme IES…

Chargement du diagramme IES…

Chargement du diagramme IES…

05 / DOCUMENTATION

Files for your project.

Technical datasheet PDF↓
