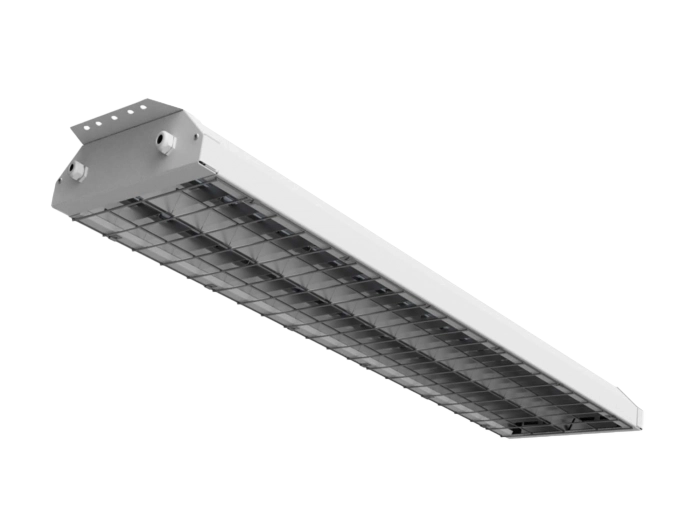

The Steel Sport series is a family of traditionally designed and robust luminaires intended for various sports installations. An innovative connection facilitates installation and future maintenance. For different types of installations and projects, Steel Sport luminaires come with multiple mounting options to meet the specific requirements of each type of arena.
Each luminaire is equipped with a mechanical protection grille. Steel Sport comes standard with 4000 kelvin LEDs and a DALI driver. 3000 kelvin and 5000 kelvin LEDs are optional.
02 / MODELS
Model variants
Steel Sport S
Power
80 W
Efficacy
140 lm/W
Luminous flux
11000 lm
Weight
6.2 kg
Steel Sport L 120
Power
120 W
Efficacy
140 lm/W
Luminous flux
16550 lm
Weight
11 kg
Steel Sport L 145
Power
145 W
Efficacy
140 lm/W
Luminous flux
20000 lm
Weight
11 kg
Steel Sport L 160
Power
160 W
Efficacy
140 lm/W
Luminous flux
22100 lm
Weight
11 kg
03 / CONFIGURATION
Technical details
Control & dimming
DALI
Colour temperatures
3000K, 4000K, 5000K
CRI
80Ra
Optics
Standard 80°, 90°, 110°
Asymétrique
Power supply
200-277VAC
Operating temperature
-10°c~50°c
DETAIL / DESIGN
IK10 impact protection
Steel Sport has a reinforced housing with an IK10 impact rating, corresponding to 20-joule impacts. This construction is intended for sports venues where luminaires may be struck by balls.
DETAIL / DESIGN
DALI driver as standard
Steel Sport luminaires have an integrated DALI-compatible driver for centralised lighting control and energy management.
DETAIL / DESIGN
Optics for sports hall refurbishment
Steel Sport optics are designed to support the replacement of older fluorescent luminaires in sports halls. A lighting study checks the distribution and any changes needed for the installation.
DETAIL / DESIGN
Manufactured in Europe
Steel Sport luminaires are designed and manufactured in Europe to meet the needs of sports installations. Local production supports logistics and after-sales service.
04 / INTEGRATION
Technical data.
Dimensions & drawing
Steel Sport dimensional drawing.
Light distribution
Diagramme IES indisponible. Vérifiez l’ID du média ou le champ Fichier ACF (retour ID ou Tableau).
Diagramme IES indisponible. Vérifiez l’ID du média ou le champ Fichier ACF (retour ID ou Tableau).
Diagramme IES indisponible. Vérifiez l’ID du média ou le champ Fichier ACF (retour ID ou Tableau).
Diagramme IES indisponible. Vérifiez l’ID du média ou le champ Fichier ACF (retour ID ou Tableau).
